Your Position:Home>Products>Self service kiosk>21.5 Self service payment Kiosk PCAP Touch screen IPS 65 waterproof

Self service kiosk

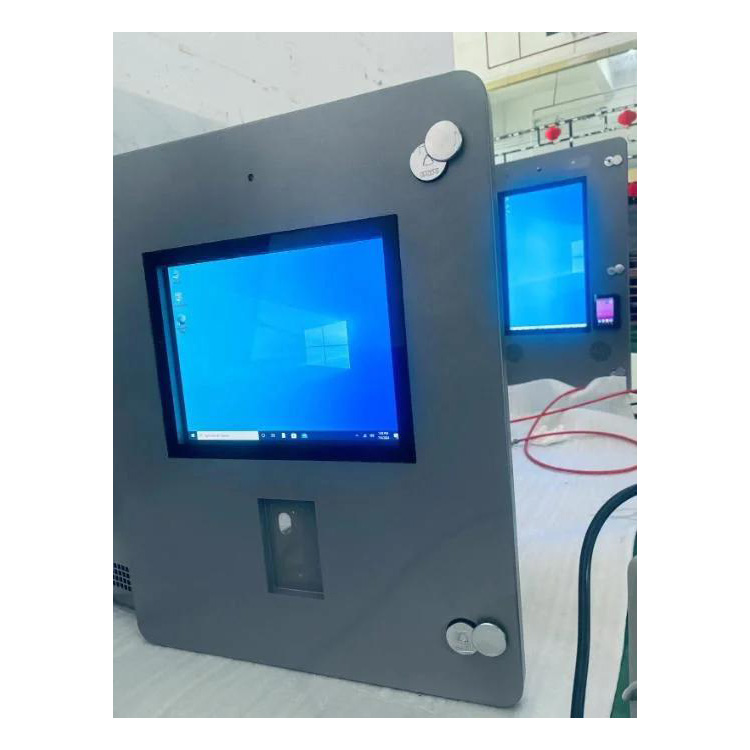

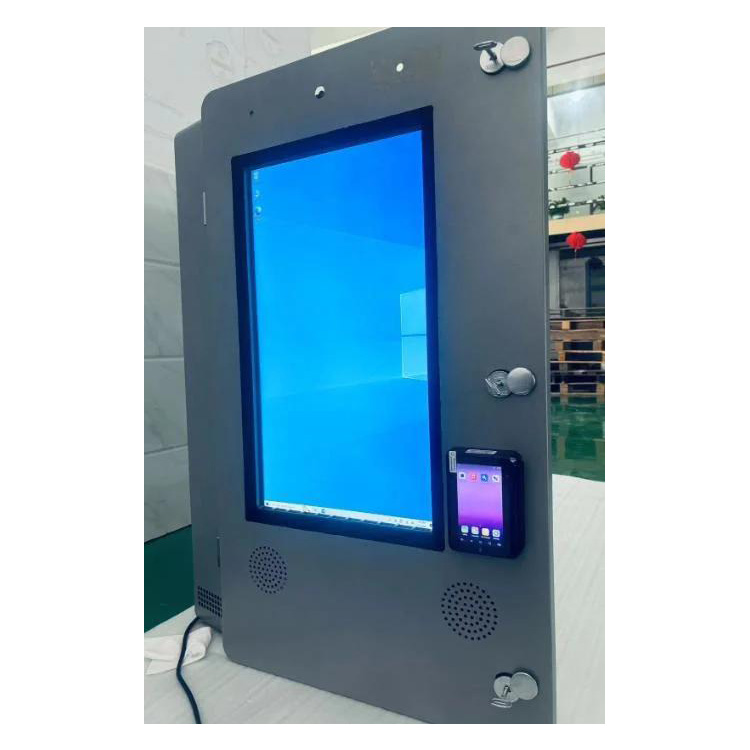

21.5 Self service payment Kiosk PCAP Touch screen IPS 65 waterproof

This product supports OEM/ODM customization.Delivery is fast and stable.Rapid production mold customization
WhatsAPP Contact Us
  • Feature
  • Specifications
  • Other

    Basic Info:

    Model NO.self service payment kiosk
    Screen TypeCapacitive
    Resistive Touch Screen TypeDigital
    CustomizedCustomized
    Panel TypeCommericial Auo Original LCD Panel
    External FunctionsPOS Credit Card Terminal Installation Bracket
    Touch TypeCapacitive Pcap Touch Screen
    IPSIP65 Rate , Outdoor Waterproof
    MotherboardPC , I5 7g Windows 10 and OEM ODM
    RAM8 DDR
    SSD128 SSD
    Shell CaseSilver, Outdoor Tiger Brand Powder Coating
    Transport PackageCorton Box, Wooden Box
    Specification21.5 inch PCAP touch self service payment kiosk
    TrademarkLCDKIOSK
    OriginChina
    HS Code8471494000
    Production Capacity50000
    Packaging & Delivery
    Package Size160.00cm * 120.00cm * 65.00cm
    Package Gross Weight75.000kg


    Product Description:

    1. TC-TOUCH-K12 15.6 inch POS machine POS systems POS hardware.

    2. This product is equipped with 80mm thermal label printer.

    3. 21.5 " Payment kiosks LED TFT(1366*768) Optional 1920*1080P" Capactive touch screen wall-mounted cash register Self-service Ordering kiosk hardware.

    4. A point of sale system can be used for personal store cash register, Self-service Ordering kiosk , Self-service kiosk. And so on.

    5. TC-TOUCH-K12 all in one cash register Pos machine systems. Optional: "MSR,WIFI,Speaker,RFID (only read/ read+write)" Desktop/ Wall-mounted,USB and COM ports are optional.

    6.This product supports OEM/ODM customization.Delivery is fast and stable.Rapid production mold customization

    7.After-sales service to solve some of your questions and practical problems


    Main Board

    Android

    Windows

    CPU

    RK3288: Quad core 1.8GB
    RK3568: Quad-core Cortex-A55 up to 2.0GHz

    J1900:: Quad core 2.0GHz
    J4125: Quad core 2.0GHz
    J6412:: Quad core 2.0GHz
    (support Core i3/ i5/ i7 CPU)

    OS Support

    RK3288: Android 9.0
    RK3568: Android 11

    Windows 7/ 10/11, Linux

    Display



    Display

    15.6" LED TFT protrait

    15.6" LED TFT protrait

    Brightness

    250 nits

    250 nits

    Resolution

    1366*768 (Option: 1920*1080P)

    1366*768 (Option: 1920*1080P)

    Touch Screen

    Capacitive touch screen

    Capacitive touch screen

    Tilting Angle

    35-90 Degree

    35-90 Degree

    RAM& Storage



    RAM

    2G

    4G/ 8G

    SSD

    16G

    mSATA 64G/ 128G/ 256G SSD

    SATA Slot

    No

    1 x mSATA Slot

    I/O Ports



    Serial

    1x COM

    1 x COM

    USB

    5 x USB 2.0 (External),
    2 x USB 2.0 (Internal, reserved for touch screen,MSR)

    5 x USB 2.0 (External),
    2 x USB 2.0 (Internal, reserved for touch screen,MSR)

    LAN

    1 x RJ-45, Giga LAN, 100 Self-adaption
    1 x RJ11

    1 x RJ-45, Giga LAN, 100 Self-adaption

    VGA

    No

    1 x DB-15, Female

    DC

    1 x +12V 5A

    1 x +12V 5A

    Audio Jack

    1 x Line Out, 1 x MIC In,1 x Internal Speaker

    1 x Line Out, 1 x MIC In,1 x Internal Speaker

    Wifi

    IEEE802.11b/g

    (option)

    Card slot

    1 x SIM card
    1 x TF card

    No

    Printer

    80mm thermal receipt printer
    Printing Speed 150mm/s,
    Work Life 100 km,
    Cutter Life 1,000,000 times,
    Paper Roll: Max Diameter 80mm

    80mm thermal receipt printer
    Printing Speed 150mm/s,
    Work Life 100 km,
    Cutter Life 1,000,000 times,
    Paper Roll: Max Diameter 80mm

    Scanner

    Support 1D+2D code

    Support 1D+2D code

    Optional

    MSR,
    Speaker,
    RFID (only read/ read+write)

    MSR,
    WIFI,
    Speaker,
    RFID (only read/ read+write)

    Stand



    Stand design

    Desktop/ Wall-mounted

    Desktop/ Wall-mounted

    Packing



    Packing size

    36*32*67cm

    36*32*67cm

    Volumn weight

    15.5 kg

    15.5 kg


    Company Profile:

    LCDKIOSK Technology  Co., Ltd. is a POS hardware design and manufacturer Since 2003, LCDKIOSK has been mainly engaged in the R&D and manufacturing of pos machines:

    One-button POS system, touch POS computer, touch POS terminal, POS machine, cash register, touch screen, cash drawer, POS printer, barcode/label printer, POS thermal receipt printer, portable printer, DOT matrix printer,Kitchen receipt printers, barcode scanners, barcode readers, customer display screens, magnetic card readers, etc. Purchasing and invoicing, inventory control, sales analysis, price setting, etc. are all carried out in a humanized manner on the windows or android platform.

    LCDKIOSK Technology has been developing new technologies to reach a higher level and meet the needs of the market. We have FCC, CE, RoHs and other certificates.


      ORDERING FROM US

      At lcdkiosk, Our goal is to make your experience as smooth and hassle-free as possible, ensuring that you receive a high-quality product that meets your expectations. From project evaluation to after-sales service, we ensure that each step is carefully executed to meet your requirements. Here are the steps to follow:

      Step 1

      Project Evaluation (1-2 days)

      The first step is to evaluate your project requirements and expectations. We have a dedicated team that will work closely with you to understand your needs, answer any questions you may have, and provide expert guidance. This evaluation process typically takes 1-2 days to gather all the necessary information.

      Step 2

      Sample Production (7-30 days)

      Once the project evaluation is complete and payment is received, our skilled production team will manufacture samples according to your specifications. This process may take anywhere from 7 to 30 days, depending on the complexity of the product and the availability of materials. We prioritize maintaining high-quality standards during this phase.

      Step 3

      Confirm the Product and Pack It (1-2 days)

      After the sample is made, we support inspection. We encourage you to check the samples thoroughly, Once the product design and quality meet your expectations, we will proceed with packing the final order. This step generally takes 1-2 days to ensure that everything is securely packaged.

      Step 4

      Shipping (7-45 days)

      When the product is packed and ready for shipment, We offer a variety of shipping options to meet your needs. If you’re in a hurry, air shipping is the fastest but more expensive option, taking just 7-10 days. Sea shipping is the most economical but takes longer, at 30-45 days. We will provide you with a more accurate estimate based on your specific destination and any customs procedures involved.

      Step 5

      After Service

      Our commitment doesn’t end with the delivery of your order. We value our relationship with customers and offer comprehensive after-sales service. If you encounter any issues or have any questions regarding the product, our dedicated support team is ready to assist you. We prioritize customer satisfaction and strive to address any concerns promptly and effectively.
