Self service kiosk

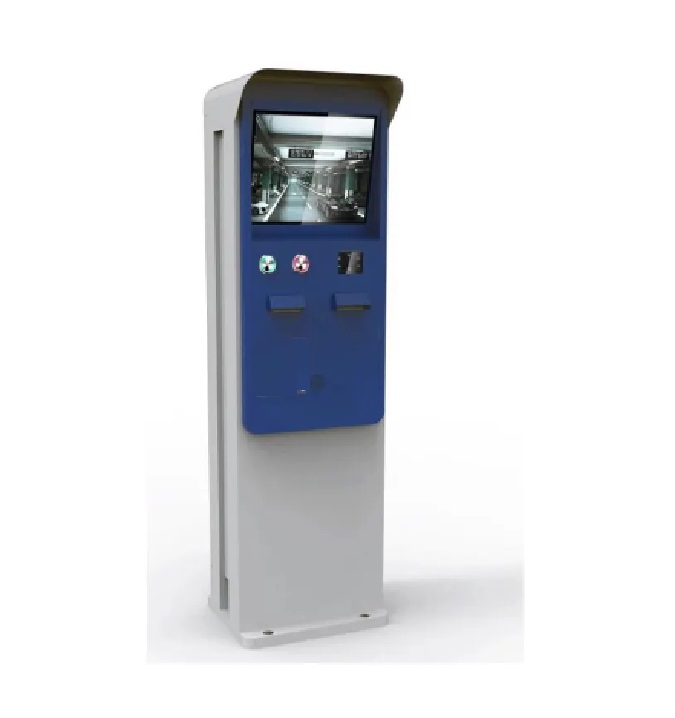

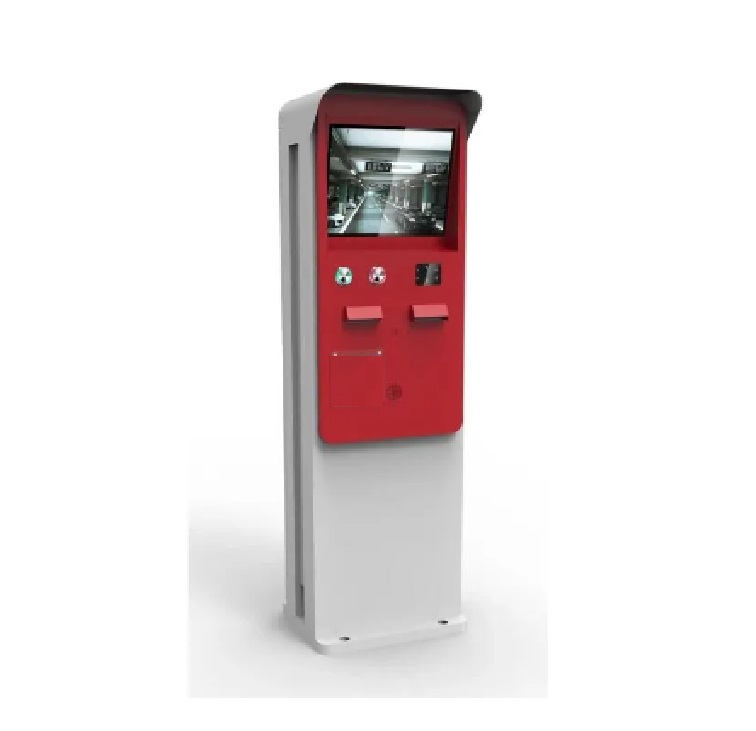

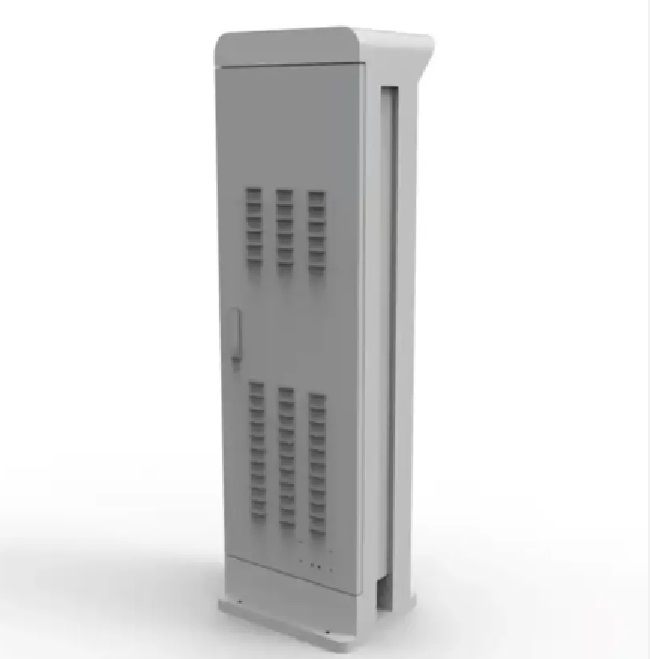

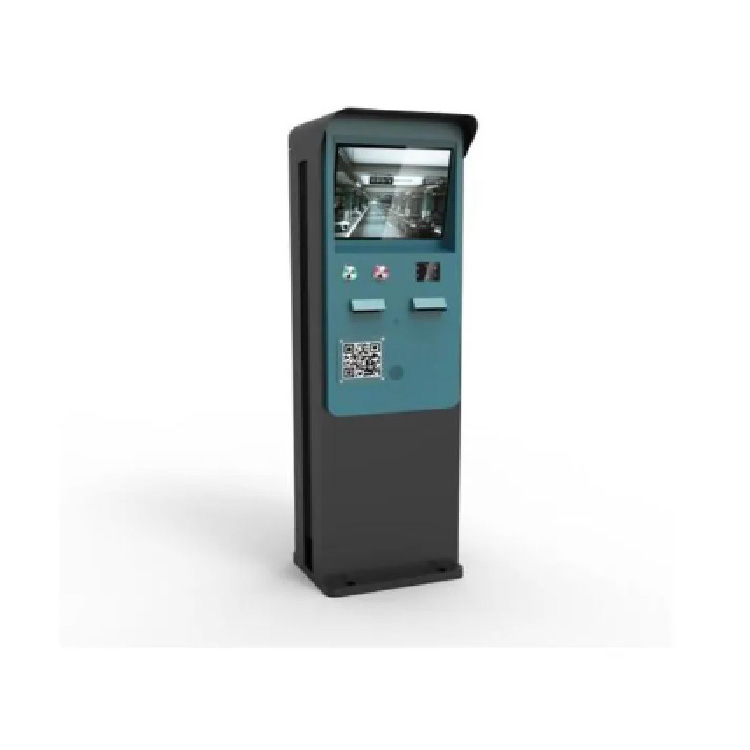

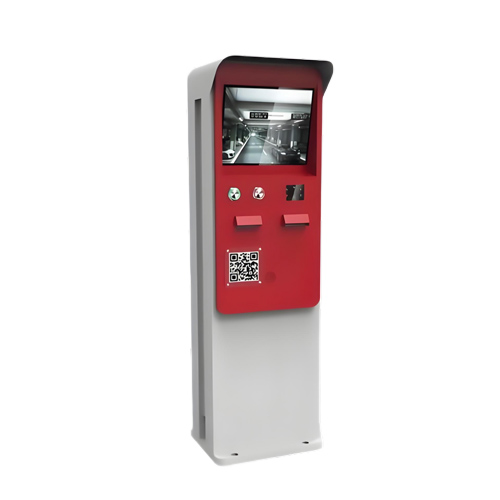

Customized Multi-Functional Automatic Ticket Self service Equipment Credit Card Outdoor Payment Kiosk
Basic Info:
| Model NO. | Self service Parking Payment Kiosk |
| Currency Detector Principle | Infrared Penetration Detection |
| Queue System Usage | Outdoor |
| Queue System Display Function | Graphics |
| Queue System Type | Visitor Management |
| Data Collector Type | Rfid Data Acquisition |
| Data Collector Signal Transmission | Wireless |
| Data Collector Operating System | Windows Mobile |
| Function | Sdk |
| Product Name | Parking Payment Kiosk |
| Application | Parking Systems |
| Touch Screen | Capacitive Touch |
| Optional Parts | RFID NFC Reader Printer Qr Code, Card Reader |
| Installation | Floorstanding Stand |
| Screen Size | 15.6/21.5/23.8/27/32 Inch |
| Color | Customized |
| Warranty | 1year |
| Keyword | Self Payment Kiosk |
| Afer-Sales Service | Provided |
| Power Supply | 100-240V, 50/60Hz |
| Shell Design | Customization Service Available |
| Ethernet | Poe Module Mount(8 Ports, 1 out) |
| Transport Package | Cartoon Box, Wooden Box for Transportation |
| Specification | 17" inch self service parking outdoor touch kiosk |
| Trademark | LCDKIOSK |
| Origin | China |
| HS Code | 8471494000 |
| Production Capacity | 50000 |
| Packaging & Delivery | |
| Package Size | 790.00cm * 455.00cm * 775.00cm |
| Package Gross Weight | 145.000kg |
Product Parameters：
| Place of Origin | Shenzhen, China |
| Brand Name | LCDKIOSK Technology company |
| Function | SDK |
| Product Name | Parking Payment Kiosk |
| Application | Parking Systems |
| Touch screen | Capacitive Touch |
| Optional parts | QR Code |
| Installation | Floorstanding Stand |
| Screen size | 15.6/21.5/23.8/27/32 Inch |
| Color | customized |
| Warranty | 1year |
| Keyword | self payment kiosk |
| Power supply | 100-240V, 50/60Hz |

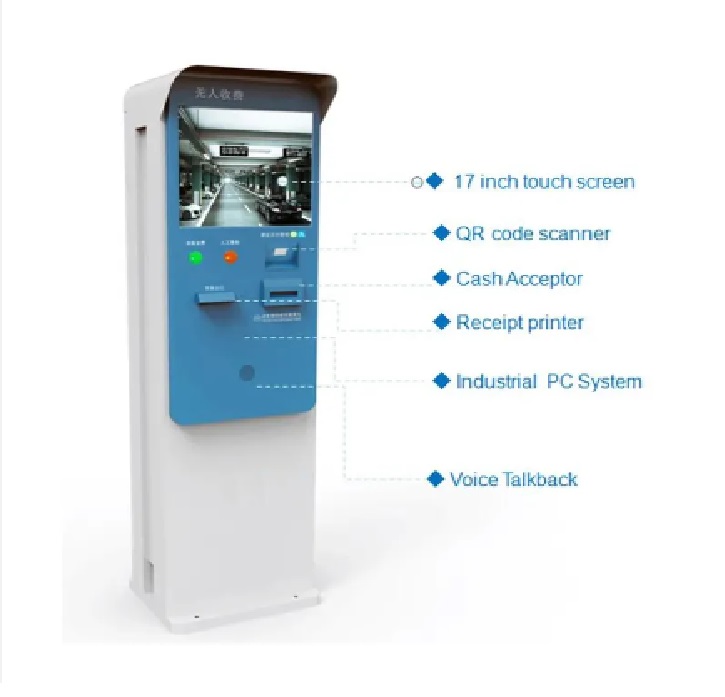

Standard Configuration | |||
CPU | Intel® i5 40xxU (1.7GHz ~ 1.9GHz, dual core) Integrated 4th gen CPU | Interfaces | POE , Power Port*1 RJ11 Port*1 RJ12 Port*1 TypeC USB*1 *1 USB Host*4 |
Storage | EMMC5.0 8GB DDR3 2GB Card Slot Micro SD*1(Biggest Support 32G) or 16GB DDR4+128GB SSD | Ethernet | 10M/100M |
Main Screen | 17 inch IPS-LCD,LED Backlight,1920*1080, Multi-touch, IPS Full Perspective,G+G | Light | Power LED*1, Breathing Light*1 |
Speaker | Built-in speaker 5W*1 Audio Playback | WIFI | IEEE 802.11b/g/n/d/e/h/i Enterprise level security which can apply WPA/WPA2 certification for WiFi |
Printer | Width: 80 +0/-0.5mm Speed: 170mm/s Support 46 languages, ASCII Characters and Graphics | Human body sensor | 0.7-2m |
Bluetooth | Fully Qualified for Bluetooth 2.1 + EDR specification including both 2Mbps and 3Mbps modulation mode Fully qualified for Bluetooth | ||
Optional | |||
NFC | ISO/IEC 14443A&B&C 15693,MIFARE 1K/4K/DESFire,Sony FeliCa | Binocular camera | Color 650nm 720p / 30fps;black and white infrared 850nm 720p / 15fps viewing angle 62 fixed focus |
Code Scan | Embedded code scanner module, supporting 1D / 2D | ||
4G | LTE (FDD) B1/B2/B3/B5/B7/B8/B20/B28A HSPA+/HSPA+/HSPA/UMTS dual-band B1/B8 EDGE/GPRS/GSM quad-band 850/900/1800/1900 MHz DC-HSPA+: | ||
Other Parameters | |||

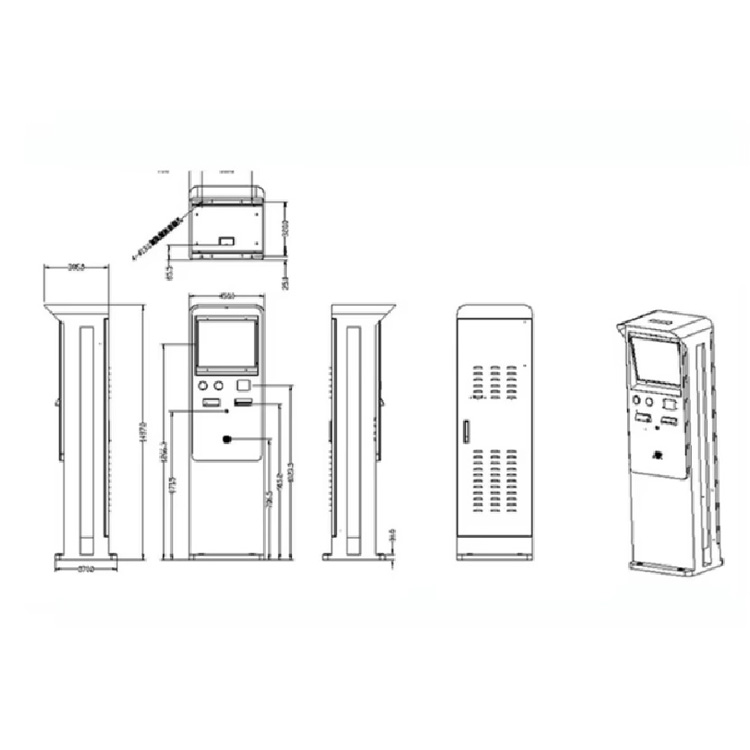

Machine Size Packing Size | 500mm*400mm*(1545-1825)mm 114.3cm*36.8cm*60.8cm | N.W. | 46.75KG |
Color | White+black | OS | Computer |
Work Environment | Operating temperature:0ºC ~ 40ºC Storage temperature : -20ºC ~ 70ºC Relative humidity: 30℅~90℅ | Power Adapter | Input:100V~240VAC,50~60HZ Output:12VDC,3A |
