LCD screen

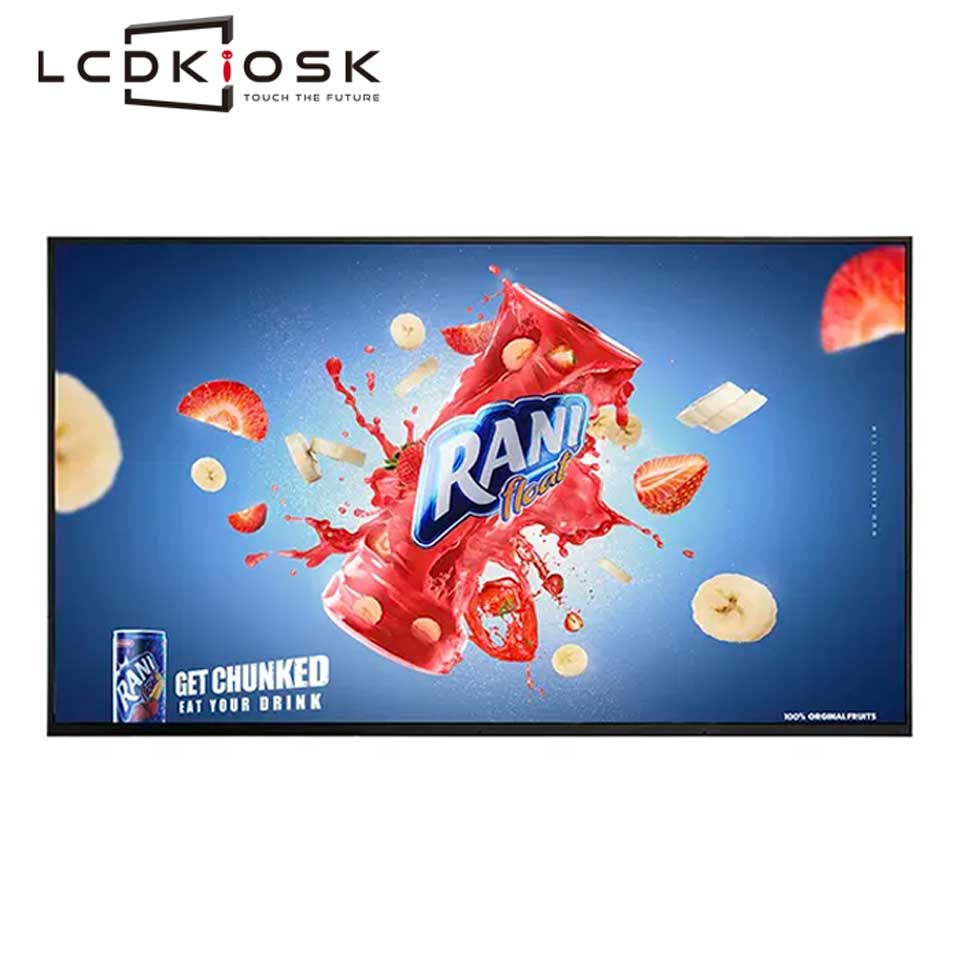

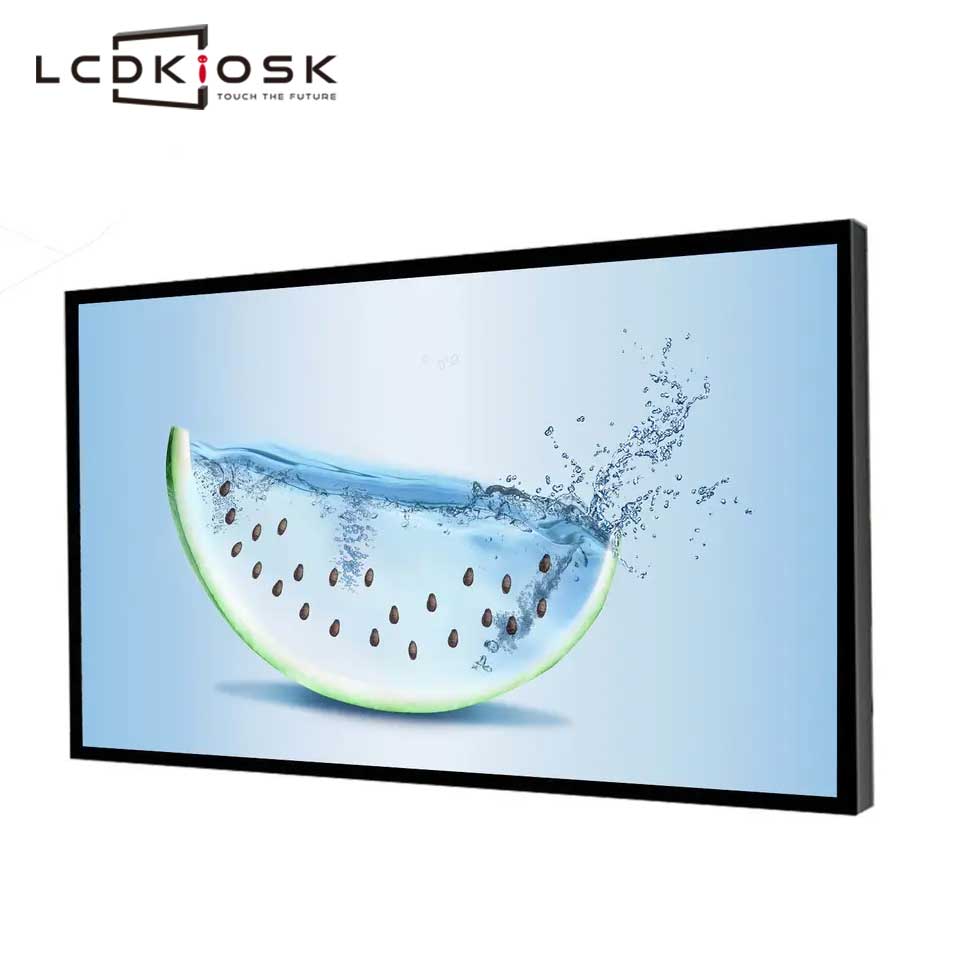

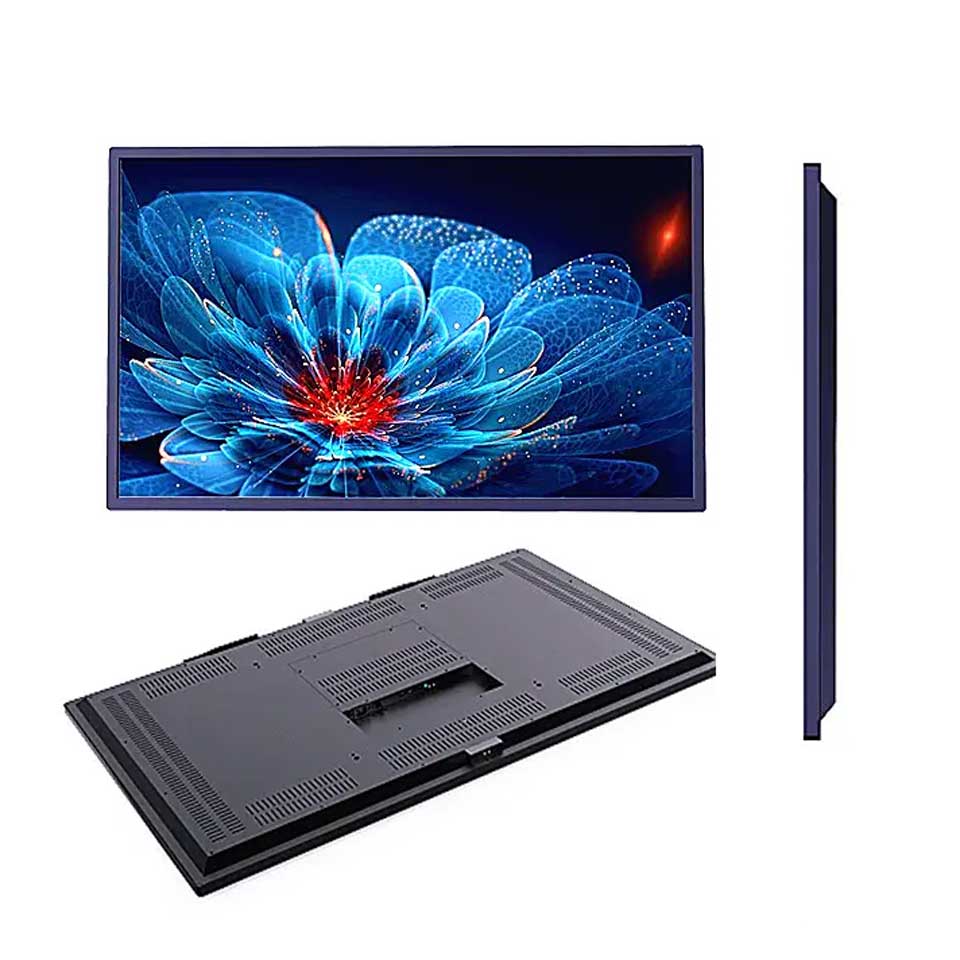

Outdoor Digital Signage Advertising Display Lcd Video Monitor

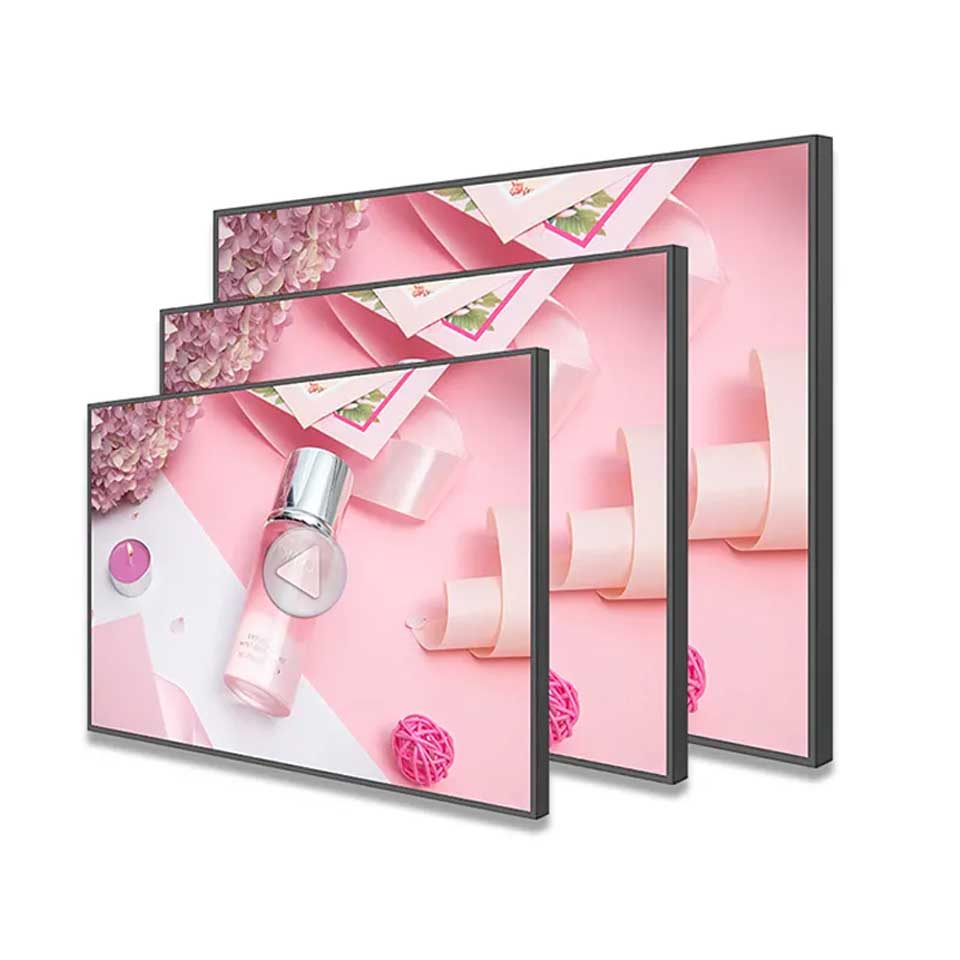

| Model | Wall-mounted LCD screen | |||||||

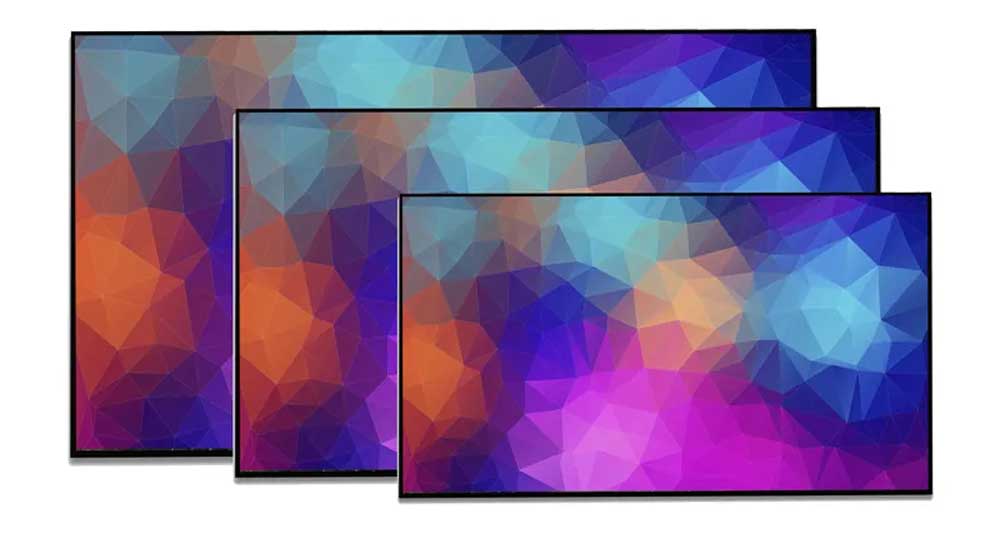

| Panel | Display Siz e(inch) | 15.6'' | 21.5'' | 32'' | 43'' | 49'' | 55'' | 65'' |
| Backlit Type | E-LED | |||||||
| Resolution | 1920x1080 | |||||||
Active Display Area (mm) | 344(H)x193.6(V) | 476.8(H) x268.3(V) | 700.5(H) x394.8(V) | 941.2(H) x529.4(V) | 1073.5(H) x 603.0(V) | 1209.6(H) x 680.4(V) | 1428.5(H)x803.5(V) | |
| Aspect Ratio | 16:09 | |||||||
Brightness (cd/m2) | 250nit | 250nit | 300nit | 300nit | 300nit | 350nit | 350nit | |
Contrast Ratio (Typ.) | 1000:1 | 1000:1 | 1000:1 | 1200:1 | 1500:1 | 2000:1 | 2000:1 | |

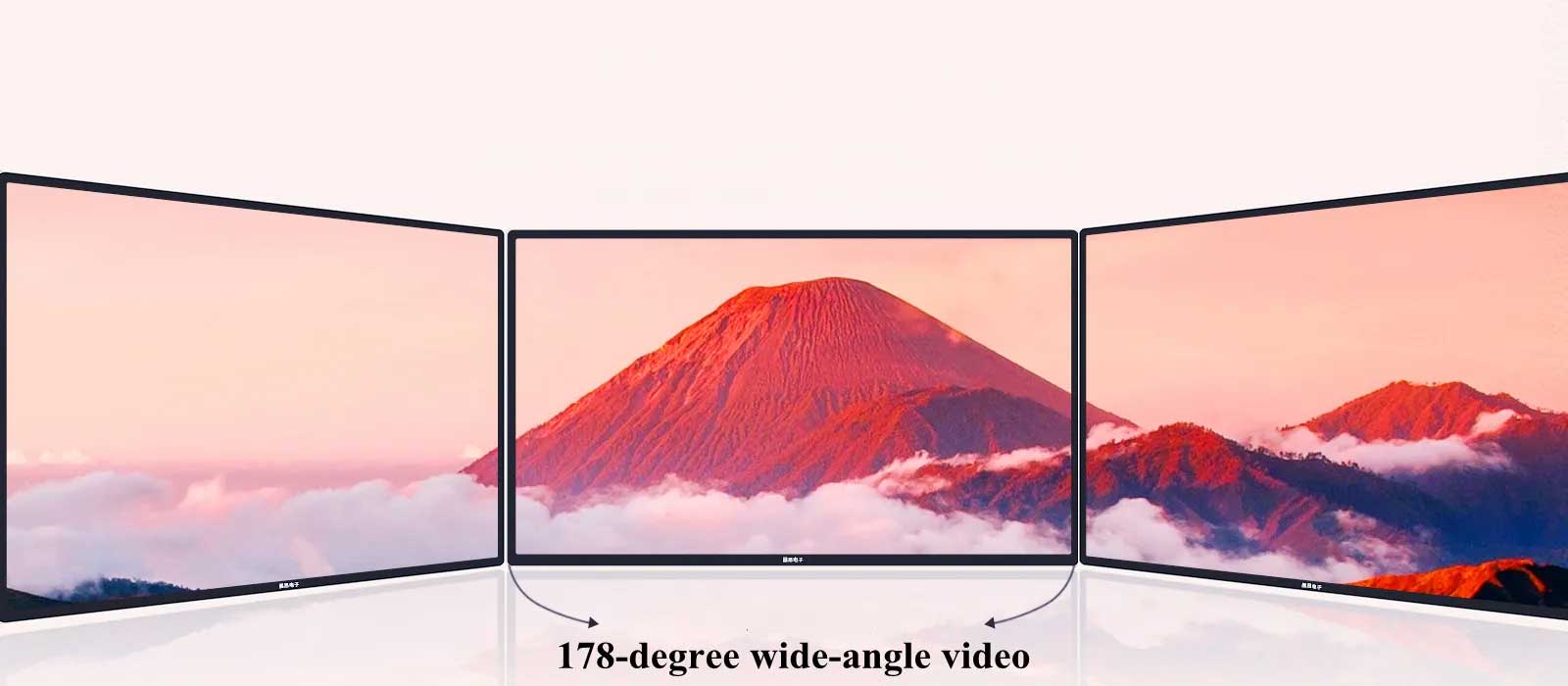

Viewing Angle (H/V) | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | |
| Color | 16.7M | |||||||
Response Time (G-to-G) | 6ms | |||||||
| Operation Hour | 24/7 | |||||||
| Sound | Audio Output | 5W, 8Q (2 sets),Dualchannel stereo audio output | ||||||
| Power | Type | Internal | ||||||
| Power Supply | AC 100-240 V~(+/-10 %),50/60 Hz | |||||||
| Waterproof | IP | IP65 | ||||||
With the widespread use of LCD LCD screen, LCD screen is not only used indoors, but also often used in the outdoors, highlighting LCD screen if applied to the outdoors not only has strict requirements on screen brightness, but also needs to adapt to the all-weather complex external environment. The outdoor LCD display produced by us is a scientific and industrial display, with LED replacing CCFL as the backlight strip. With the help of LED backlight technology, not only the brightness of LCD is improved, but also the degree of color restoration and service life are greatly improved. Optical film, brightening polarizer, and the use of high light transmittance LCD panel can significantly improve the brightness of the LCD screen, greatly increase the display optical effect and anti-vibration performance of the display screen, the realization of the LCD screen in the sunlight clearly visible.
Sunlight readable screen panel High brightness by 2500nits Self-developed LED backlighttechnology LG liquid display glass 24/7 working time |  |

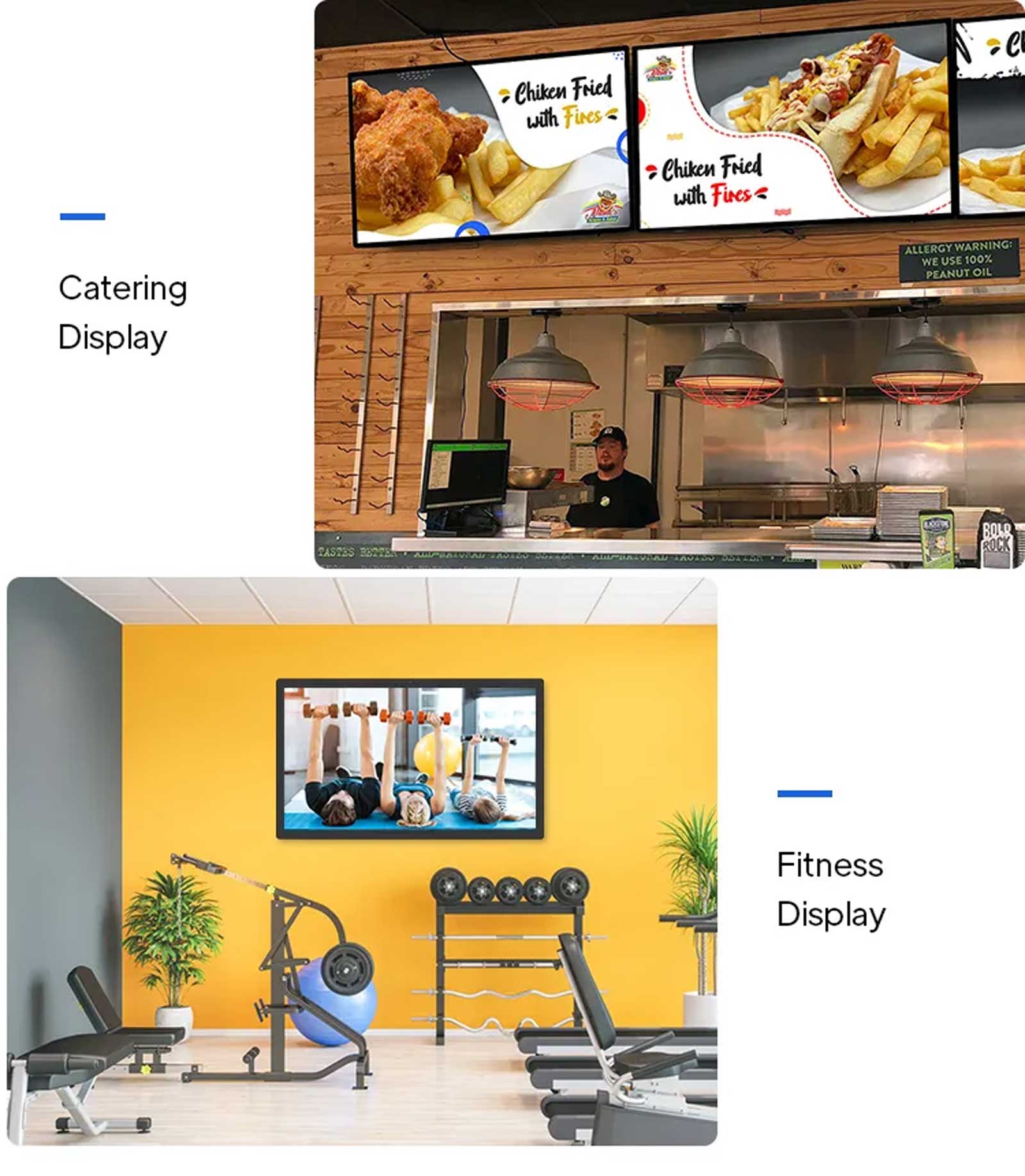

Places of use
shopping malls, milk tea shops, clothing stores, buildings, hospitals, banks, etc.
