Capacitive Touch Screens vs. Touch Screens: Understanding the Differences

Capacitive Touch Screens vs. Touch Screens: Understanding the Differences.In the realm of electronic devices, touch screens and capacitive touch screens are two technologies that have revolutionized how we interact with our gadgets. While they share a common goal—enabling users to interact with devices through touch—they differ significantly in their underlying principles, functionalities, and applications. This article delves into the distinctions between capacitive touch screens and touch screens, shedding light on their respective characteristics, advantages, and use cases.

Definition and Overview

Touch Screens, also known as touch panels or touch interfaces, are input devices that allow users to interact with devices through touch. They convert touch locations into coordinate data, enabling various commands and actions. Touch screens have evolved from simple resistive and infrared technologies to more advanced capacitive, surface acoustic wave, and other forms. These advancements have significantly improved user experience and device functionality.

Capacitive Touch Screens, on the other hand, are a specific type of touch screen technology that operates based on the principle of capacitance. They are characterized by their high sensitivity, fast response times, and multi-touch capabilities. Capacitive screens are widely used in smartphones, tablets, and other mobile devices, where precise and intuitive touch interactions are crucial.

Working Principles

Touch Screens

The working principle of touch screens varies depending on the specific technology used. However, in general, touch screens involve a combination of touch sensors and touch controllers. When a user touches the screen, the touch sensor captures the touch signal and converts it into an electrical or other form of signal. This signal is then processed by the touch controller to determine the location and nature of the touch (e.g., tap, swipe). The processed information is then sent to the device's processor or relevant components to execute the corresponding actions.

Capacitive Touch Screens

Capacitive touch screens work based on the principle of capacitance. They are typically constructed with two layers of transparent conductive material (e.g., ITO glass), separated by an insulating layer. When a finger or other conductive object touches the screen, it alters the electric field distribution on the screen's surface, which is detected by sensors to determine the touch location.

The capacitive touch screen's high sensitivity and fast response are attributed to its ability to detect even the slightest touch. Additionally, its multi-touch functionality allows users to perform complex gestures using multiple fingers simultaneously.

Key Differences

Technology and Construction

Touch Screens: Encompass a broad range of technologies, including resistive, capacitive, infrared, and surface acoustic wave. Each technology has its unique construction and operation principles.

Capacitive Touch Screens: Specifically utilize the principle of capacitance. They are typically constructed with two layers of transparent conductive material separated by an insulating layer.

Sensitivity and Response Time

Touch Screens: Sensitivity and response times can vary depending on the specific technology used. Resistive touch screens, for instance, may have slower response times and lower sensitivity compared to capacitive screens.

Capacitive Touch Screens: Known for their high sensitivity and fast response times. They can detect even the slightest touch and respond almost instantly.

Multi-Touch Capabilities

Touch Screens: Not all touch screen technologies support multi-touch. Resistive touch screens, for example, are primarily designed for single-touch operations.

Capacitive Touch Screens: Widely known for their multi-touch capabilities. They allow users to interact with the screen using multiple fingers simultaneously, enhancing the user experience and enabling more intuitive interactions.

Durability and Scratch Resistance

Touch Screens: Durability and scratch resistance can vary depending on the specific technology and material used. Some touch screen technologies may require additional protective layers to enhance durability.

Capacitive Touch Screens: Often constructed with hard glass surfaces, making them highly durable and scratch-resistant. This makes them ideal for devices that are frequently handled or subjected to wear and tear.

Cost and Application

Touch Screens: Offer a range of cost options, making them suitable for various applications. Resistive touch screens, for instance, are often more cost-effective and suitable for budget-conscious applications.

Capacitive Touch Screens: Generally more expensive due to their advanced technology and superior performance. However, their high sensitivity, fast response times, and multi-touch capabilities make them ideal for premium devices and applications where user experience is critical.

Advantages and Disadvantages

Touch Screens

Advantages:

Versatility: Suitable for various applications and device sizes.

Cost-Effective: Some touch screen technologies (e.g., resistive) are more cost-effective.

Wide Range of Options: Multiple technologies to choose from, each with its unique advantages.

Disadvantages:

Variable Performance: Sensitivity and response times can vary depending on the specific technology used.

Durability Concerns: Some touch screen technologies may require additional protective layers to enhance durability.

Capacitive Touch Screens

Advantages:

High Sensitivity: Can detect even the slightest touch.

Fast Response Time: Almost instant response to touch inputs.

Multi-Touch Capabilities: Enhance user experience and enable complex gestures.

Durability: Hard glass surfaces provide high scratch resistance and durability.

Disadvantages:

Higher Cost: Generally more expensive due to advanced technology.

Environmental Limitations: May be affected by humidity or water on the screen surface.

Applications and Use Cases

Touch Screens

Touch screens are widely used in various applications, including:

Smartphones and Tablets: Provide an intuitive touch interface for users.

Retail and Point-of-Sale Systems: Enable customers to interact with displays and make purchases.

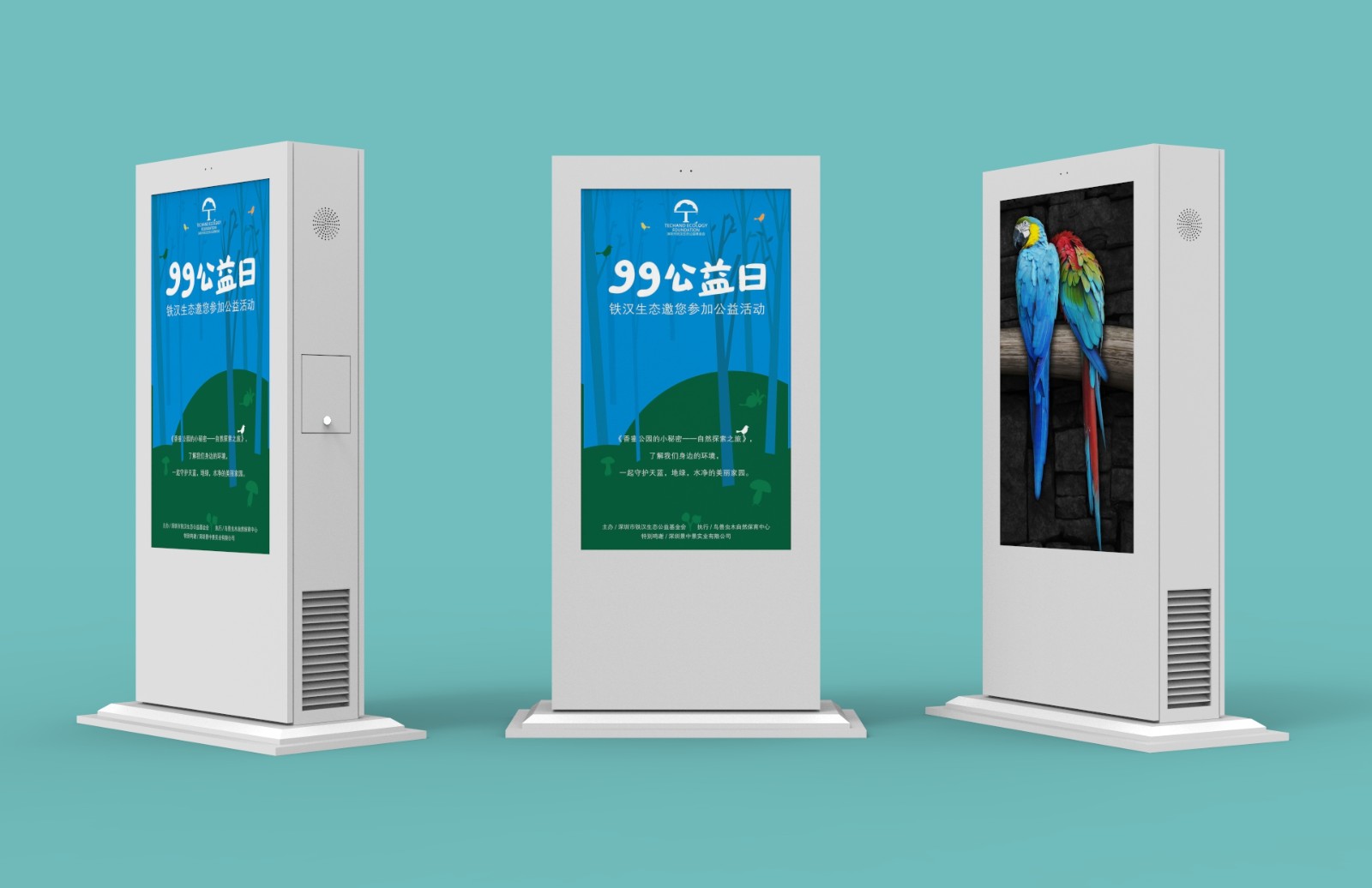

Public Information Displays: Provide interactive kiosks for information retrieval.

Industrial Controls: Allow operators to interact with machinery and equipment.

Capacitive Touch Screens

Capacitive touch screens are particularly well-suited for applications requiring high sensitivity, fast response times, and multi-touch capabilities, such as:

Smartphones and Tablets: Provide an enhanced user experience with smooth and intuitive touch interactions.

Gaming Devices: Enable complex gestures and multi-touch controls for immersive gameplay.

Premium Appliances: Offer a high-end touch interface for modern home appliances.

Automotive Infotainment Systems: Enable drivers and passengers to interact with navigation and entertainment systems safely and conveniently.

Conclusion

In summary, while touch screens and capacitive touch screens share a common goal of enabling touch-based interactions, they differ significantly in their underlying principles, functionalities, and applications. Touch screens offer versatility and cost-effectiveness, making them suitable for a wide range of applications. Capacitive touch screens, on the other hand, excel in sensitivity, response time, and multi-touch capabilities, making them ideal for premium devices and applications where user experience is paramount. Understanding these differences is crucial for selecting the right touch technology for your specific needs.
